| Quantity: | |
|---|---|
FP4800
| MODEL | GMX4400 | GMX4600 | GMX4800 |
| 80立体声输出功率80 Stereo | 4X400W | 4X600W | 4X800W |
| 4Ω立体声输出功率4Ω Stereo | 4X600W | 4X900W | 4X1200W |
| 8Ω桥接单声道输出80 Bridge | 1200W+1200W | 1800W+1800W | 2400W+2400W |
| 4Ω桥接单声道输出4Ω Bridge | 1600W+1600W | 2400W+2400W | 3200W+3200W |
| 通道数Channels | 4 | ||
| 输出电路Output Circuit | CLASSH | ||
| 频率响应Frequency Response | 20Hz-20KHz(+0/-0.5dB) | ||
| 输入灵敏度Input Impedance | 0.7V/1.0V/1.5V | ||
| 输入阻抗Input Impedance平衡Balanced | 20K ohms | ||
| 不平衡Unbalanced | 10K ohms | ||
| 串音Cross Talk | >80dB | ||
| 信噪比SN Ratio | 103dB | ||
| 阻尼系数Damping Factor | >400 | ||
| 总谐波失真THD+N | <0.05%20Hz-20KHz | ||
| 瞬态响应Slew Ratio | 40V/ms | ||
| 控制器Control 前面板Front panel | POWER开关，Volume Switch音量控制器 | ||
| 后面板Rear panel | MODE开关(ST/BRG/PAR) | ||
| 接口Connect 输入Input | XLR | ||
| 输出Ouput | SPEAKON | ||
| 指示灯Indicator Light | POWER,SIGNAL,PROTECT,CLIP | ||
| 负载保护Overload Protect | POWER,DC FAULT,输出继电器开关 | ||
| 功放保护Amplifier Protect | 过热：输出静音(散热片温度>)(自动恢复) | ||
| 冷却风扇Fans | 可变速风扇X4 | ||
| 电源要求Power AC | 220V-240V | ||
| 机架空间Rack Space | 2U | ||
| 包装尺寸Packing Size | 650x585x158mm 1pcs/carton | ||
| 重量Gross Weight | 26kg | 28kg | 30kg |
| 包含附件Attachments | 电源线POWER CABLE,使用说明书USER MANUAL | ||

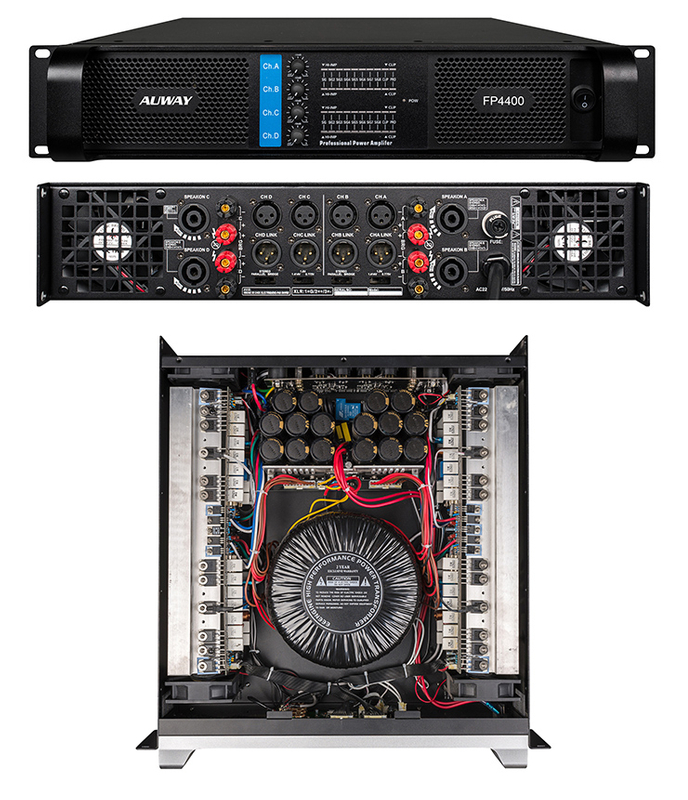

The Class H Circuit 4 Channel 4x600W Professional DJ Power Amplifier Outdoor Equipment is a rugged, high-performance solution built for the most demanding outdoor audio environments. With four independent Class H channels delivering 600W at 8Ω each, this amplifier combines versatility with durability, featuring an IP65-rated enclosure to resist dust, water, and extreme temperatures. Designed for mobile DJs, outdoor festivals, and permanent outdoor installations, it ensures reliable operation and pristine sound quality even in harsh weather conditions.
Four-Channel Class H Design: Each channel utilizes a hybrid Class H circuit for 90% efficiency and low distortion, enabling simultaneous powering of multiple speakers (front mains, side fills, subwoofers) without signal degradation. Supports stereo, parallel, or bridge modes per channel pair for flexible system configurations.
Weatherproof Construction: The powder-coated aluminum alloy chassis with sealed connectors and gasketed vents achieves an IP65 rating, protecting internal components from rain, snow, and dust. Rated for operation in temperatures ranging from -20°C to +50°C, ideal for outdoor use in all climates.
Enhanced Signal Routing: Features dual Neutrik XLR inputs per channel with thru-connections for daisy-chaining, plus individual gain controls and LED status indicators for easy setup. Built-in crossover filters allow dedicated subwoofer and satellite speaker management.
Heavy-Duty Cooling: Passive heat sinks combined with IP54-rated fans provide efficient cooling without drawing in contaminants, ensuring silent operation during low loads and increased airflow under heavy demand.
Outdoor Music Festivals: Powers distributed speaker systems across large venues, with weatherproofing ensuring reliability during multi-day events.
Mobile DJ Setups: Compact 3U design with built-in handles allows easy transport, while four channels eliminate the need for multiple amplifiers.
Permanent Outdoor Installations: Suits stadiums, amusement parks, and outdoor advertising systems, with long-term durability in exposed environments.
This outdoor-rated amplifier includes a 2-year warranty covering weather-related component failures, in addition to standard defect coverage. Regular maintenance checks are recommended to uphold warranty validity.
Q: Is the IP65 rating suitable for submersion?
A: No, it protects against water jets and splashes but is not waterproof. Avoid direct submersion or prolonged exposure to standing water.
Q: Can I bridge all four channels for mono operation?
A: Yes, channels can be bridged in pairs (two bridged channels total), delivering 2400W at 8Ω per bridged pair for subwoofer applications.
Q: What type of input connectors are used?
A: Professional Neutrik XLR3 balanced inputs with 1/4" TRS parallel connections, ensuring noise-free signal transmission in high-interference environments.
Q: How does the thermal protection work?
A: A built-in thermal sensor reduces output power progressively if internal temperatures exceed 85°C, restoring full power once cooling occurs, preventing sudden shutdowns during critical performances.
